Marin Alcatraz 2
$1,499.00
Details

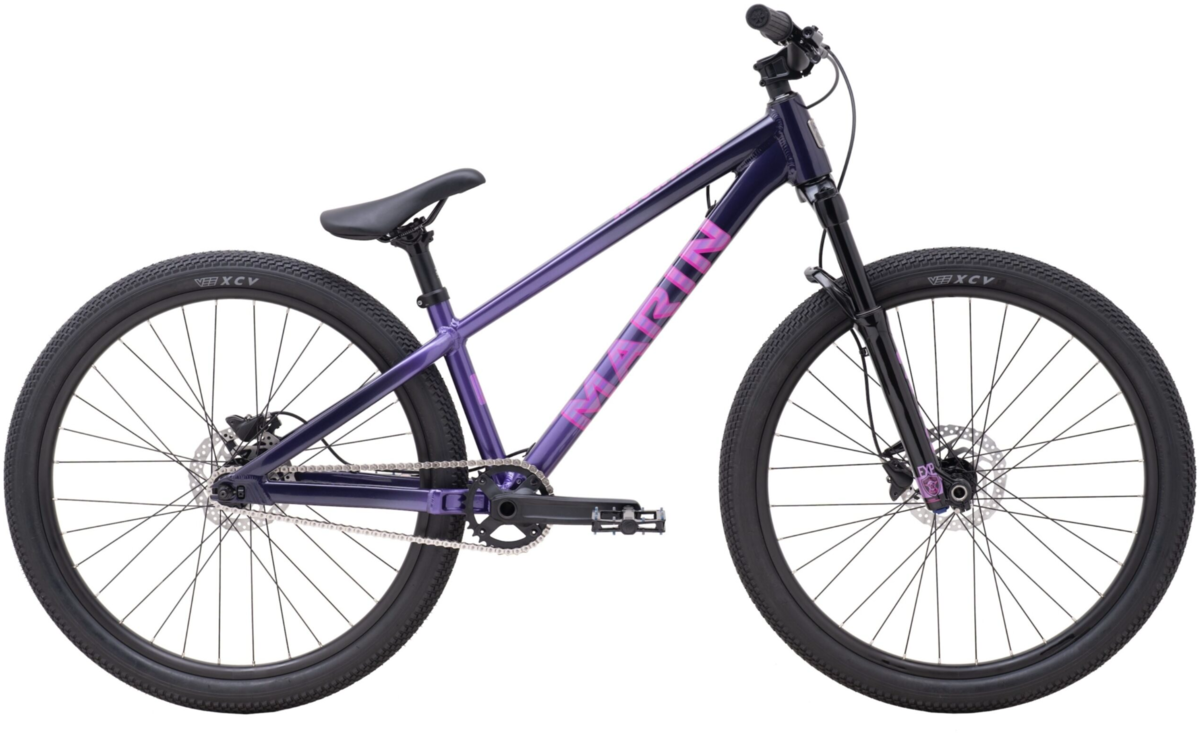

Designed in conjunction with Marin ambassador/MTB legend Matt Jones, the Alcatraz collection is ready for dirt jumps, pump tracks, skateparks, slopestyle, or virtually anything you throw at it.
The Series 3 aluminum frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars. There’s a 100mm Manitou Expert coil fork, front and rear Shimano hydraulic disc brakes, Vee Tire rubber and plenty of bombproof Marin components. Best of all, it’s available in two frame sizes, regular and long.
| FRAME SIZE | SHORT | LONG |
|---|---|---|
| STACK (mm) | 575 | 580 |
| REACH (mm) | 385 | 430 |
| HEADTUBE ANGLE | 69° | 69° |
| HEADTUBE LENGTH (mm) | 115 | 120 |
| SEATTUBE ANGLE | 69° | 69° |
| SEATTUBE LENGTH (mm) | 320 | 320 |
| TOPTUBE EFFECTIVE (mm) | 600 | 646 |
| BB HEIGHT (mm) | 317 | 317 |
| BB DROP (REAR/FRONT) (mm) | 22 | 22 |
| CHAINSTAY (mm) | 395 | 395 |
| WHEELBASE (mm) | 1037 | 1083 |
| STANDOVER HEIGHT (mm) | 370 | 400 |
| FORK OFFSET (mm) | 42 | 42 |
| SEATPOST DIAMETER (mm) | 30.9 | 30.9 |
| HANDLEBAR WIDTH (mm) | 750 | 750 |
| STEM LENGTH (mm) | 40 | 40 |
| CRANK LENGTH (mm) | 170 | 170 |
Specs
| Frame | Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
|---|---|
| Fork | Manitou Circus Expert, 26", 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle |
| Rims | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
| Hubs |
Front: Forged Alloy, 110x20mm, Disc, 32H Rear: Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Crankset | Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD |
| Cassette/Freewheel | 14T Single Speed Cog |
| Chain | KMC HL-1 |
| Brakes | Shimano MT201 Hydraulic Disc, 160mm Rotor |
| Brake Levers | Shimano MT201 |
| Handlebars | Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 750mm Width, 4º Up, 9º Back |
| Tape/Grips | Marin Grizzly Lock-On |
| Stem | Marin 3D Forged Alloy, 31.8mm clamp, 40mm extension |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin DJ Saddle |
| Pedals | Alloy Platform |
| Accessories & Extras | Marin Chain Tension Device |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Purple Fade / Small / 26-inch | 843346129574 | 739117001 | 210000035204 |
| Purple Fade / Large / 26-inch | 843346129581 | 739117002 | 210000035317 |
