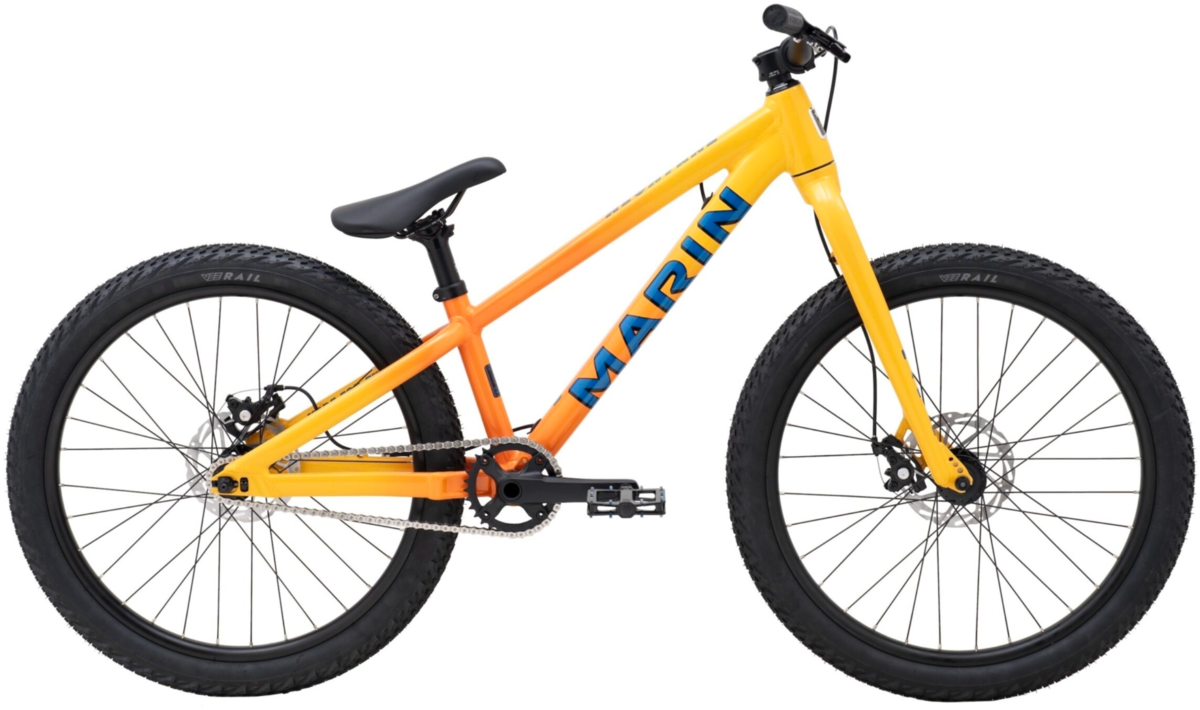

Marin Alcatraz 24-inch
$899.00
Details
We've taken the Alcatraz 1 and scaled it down for smaller riders. Built upon the same tubing as the larger models, it features a 360mm reach, 69° headtube angle, and 72° seattube angle, with 369mm chainstays. A suspension-corrected rigid CrMo fork is designed to handle rough-and-rowdy riding, and a simple and stout single-speed drivetrain and Tektro mechanical disc brakes ensure a fun and safe ride.
| FRAME SIZE | ONE SIZE |
|---|---|
| STACK (mm) | 525 |
| REACH (mm) | 360 |
| HEADTUBE ANGLE | 69° |
| HEADTUBE LENGTH (mm) | 112 |
| SEATTUBE ANGLE | 69° |
| SEATTUBE LENGTH (mm) | 320 |
| BB DROP (REAR/FRONT) (mm) | 8mm |
| CHAINSTAY (mm) | 369 |
| FORK OFFSET (mm) | 42 |
| SEATPOST DIAMETER (mm) | 30.9 |
| HANDLEBAR WIDTH (mm) | 700 |
| STEM LENGTH (mm) | 35 |
| CRANK LENGTH (mm) | 152 |
Specs
| Frame | Series 3 6061 Aluminum, 24” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
|---|---|
| Fork | Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts |
| Rims | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
| Hubs |
Front: Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing Rear: Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire, Rail 24x2.25”, LSG Compound, Wire Bead |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Crankset | Marin Forged Alloy, Alloy 32T DM Chainring, 155mm Length |
| Cassette/Freewheel | 14T Single Speed Cog |
| Chain | KMC HL-1 |
| Brakes | Tektro MD-M280 Mechanical Disc 160mm Rotor |
| Brake Levers | Tektro CL-330TS Alloy |
| Handlebars | Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 700mm Width, 4º Up, 9º Back |
| Tape/Grips | Marin MTN, Closed End |
| Stem | Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin DJ Saddle |
| Pedals | Alloy Platform |
| Accessories & Extras | Marin Chain Tension Device |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Yellow Fade / 24-inch / 24-inch | 843346129598 | 739060001 | 210000035582 |
