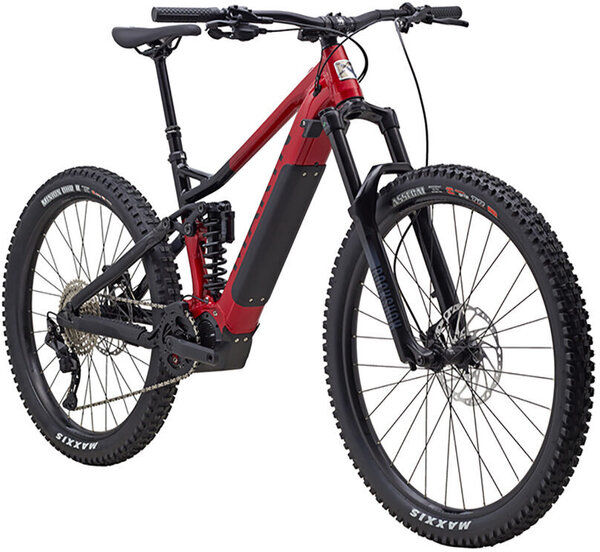

Marin Alpine Trail E1

Marin Alpine Trail E1
  • Color: Red/BlackCharcoal
$3,899.00
Color: Red/BlackCharcoal
Size: Large
Please select options Unavailable
Order now and pick up in-store for free

Details

The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.

Series 4 Aluminum Frame
Alpine Trail E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

MultiTrac Suspension
The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination, there is no need for platform or lockout levers, just get on and blast up the hills.

Mixed Wheel Sizes
29" front and 27.5"+ rear wheel sizes are the ideal combination for the Alpine Trail E—the larger front wheel easily rolls over most any trail obstacle and offers the best cornering traction, while the burly 27.5 x 2.8" rear setup adds playfulness and enhances acceleration and braking traction.

Dropper Post Optimized
The modern-day trail rider needs their saddle out of the way at times, while low-slung frames require longer length posts. On the Alpine Trail E, seat tube lengths have been minimized, so riders of all sizes can get the proper extension needed.

- Shimano STEPS E7000 system and 504Wh battery
- Suspension: RockShox 35 Gold RL 29" / Rock Shock Super Deluxe Coil R
- Wheel size: Mixed 29"/27.5"
- Frame: Aluminum

bike frame with labeled dimensions
Bike Sizes:
SMLXL
A. Reach 445mm 465mm 485mm 505mm
B. Stack 613mm 622mm 631mm 640mm
C. Standover 681.6mm 681.4mm 686.8mm 689.8mm
D. Effective Top Tube 575mm 597mm 619mm 641mm
E. Head Tube Angle 63° 63° 63° 63°
F. Head Tube Length 100mm 110mm 120mm 130mm
G. Seat Tube Angle 78° 78° 78° 78°
H. Seat Tube Length 390mm 400mm 425mm 430mm
I. Bottom Bracket Height 340.5mm 340.5mm 340.5mm 340.5mm
J. Bottom Bracket Drop 28mm 28mm 28mm 28mm
K. Fork Rake/Offset 44mm 44mm 44mm 44mm
M. Wheelbase 1215mm 1239mm 1264mm 1288mm
O. Chainstay Length 435mm 435mm 435mm 435mm
Handlebar Width 780mm 780mm 780mm 780mm
Stem Length 35mm 35mm 35mm 35mm
Crank Length 165mm 165mm 165mm 165mm

Specs

Frame All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Fork Rock Shock 35 Gold RL 29", Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset
Rear Shock Rock Shock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb
Rims Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hubs Front: Forged Alloy, 110x15mm, Centerlock Disc, 32H
Rear: Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body
Spokes 14g Black Stainless Steel
Tires Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, Double Down, Tubeless Compatible
Rear: Maxxis Minion DHR II 27.5x2.8", 3C Maxx Terra, EXO+, Tubeless Compatible
Crankset Marin Forged Alloy 165mm Length with e13 Plus Chain guide, Aluminum Plate
Chainrings Narrow Wide 38T Chainring
Shifters Shimano Deore M4100-R, I-Spec EV, 10-Speed
Rear Derailleur Shimano Deore 5100 Direct Attachment, 10-Speed
Cassette/Freewheel Shimano Deore M4100-10 10-speed 11-46T
Chain KMC X-10E, E-Bike Specific, Silver
Brakes Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
Brake Levers Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Tape/Grips Marin Single Clamp Locking
Stem Marin 3D Forged Alloy, 35mm
Headset FSA No 57, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Saddle Marin E-MTB Saddle
Pedals Marin MTB Plastic
Motor Shimano STEPS E7000, 250W, 60Nm
Battery BT-8035, Internal 504Wh
Controller/Display SC-E7000 Display
Charger Shimano Battery Charger EC-E6002

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Red/BlackCharcoal / Large 843346109446 732455003 210000031586
