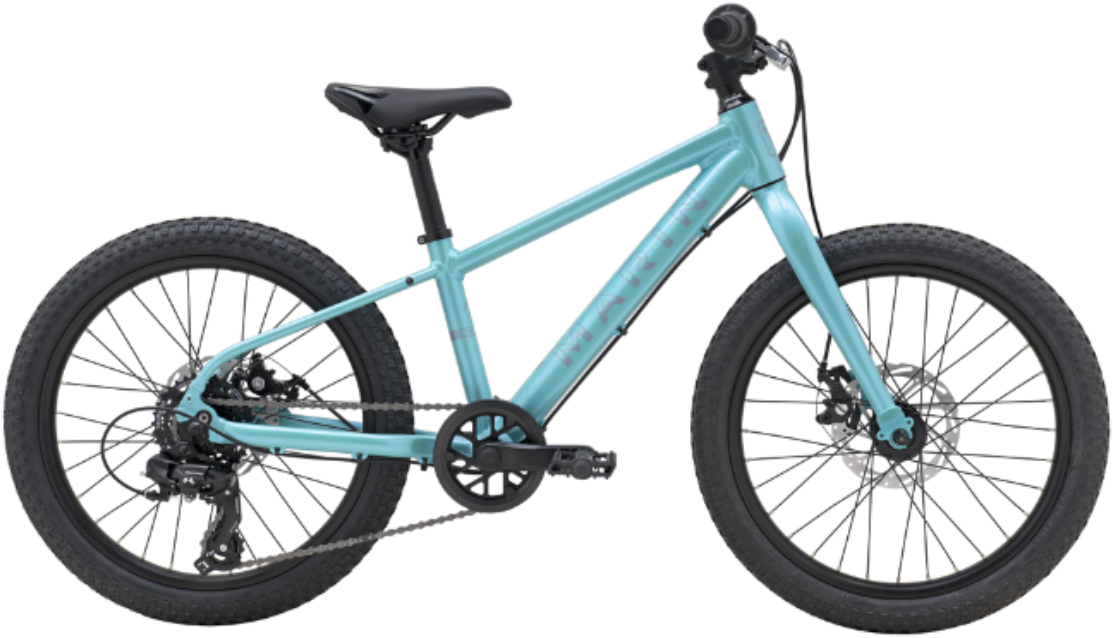

Marin Bayview Trail 20
$529.00
Details
The Bayview Trail 20” bikes are built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.

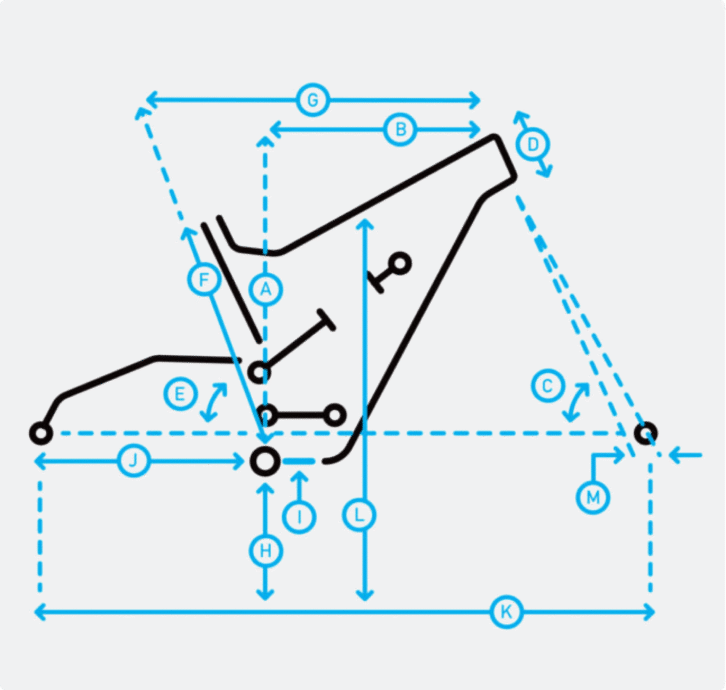

| One Size | ||
|---|---|---|
| A | Stack | 502.75 |
| B | Reach | 331.92 |
| C | Headtube Angle | 70° |
| D | Headtube Length | 105 |
| E | Seattube Angle | 73° |
| F | Seattube Length | 321 |
| G | Toptube Effective | 485 |
| H | BB Height | 283 |
| I | BB Drop | 25 |
| J | Chainstay | 400 |
| K | Wheelbase | 946.97 |
| L | Standover Height | 581.19 |
| M | Fork Offset | 40 |
| Seatpost Diameter | 27.2 | |
| Handlebar Width | 590 | |
| Stem Length | 70 | |
| Crank Length | 152 |
- All lengths in millimeters
Specs
| Frame | Series 1 6061 Aluminum, 20” Wheels, IS Seatstay Disc Mount, 135mm Dropouts |
|---|---|
| Fork | Steel Rigid Fork, 100mm Spacing, QR Lever |
| Rims | Marin, Double Wall Alloy |
| Hubs | Forged Aluminum Alloy, 32H |
| Spokes | 14g Stainless Steel |
| Tires | Multi Surface, 20”x2.125” |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Crankset | Forged Alloy, 30T, 115mm, Ring Guard |
| Shifters | Shimano Revo Twist 1x7-Speed |
| Rear Derailleur | Shimano Altus, 7-Speed |
| Cassette/Freewheel | Shimano CSHG200, 7-Speed, 12-32T |
| Chain | KMC Z8 |
| Brakes | Tektro MDM280 Mechanical Disc, 160mm Rotor |
| Brake Levers | Kids Specific Short Reach Alloy Lever |
| Handlebars | Marin Riser, 30mm Rise, 580mm Width |
| Tape/Grips | Marin Dual Density |
| Stem | Marin Alloy, 40mm |
| Headset | FSA, Threaded |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Kids MTB |
| Pedals | Kids Specific Nylon Pedal |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Teal Silver / 20-inch / 20-Inch | 843346134899 | 740697001 | 210000036447 |
