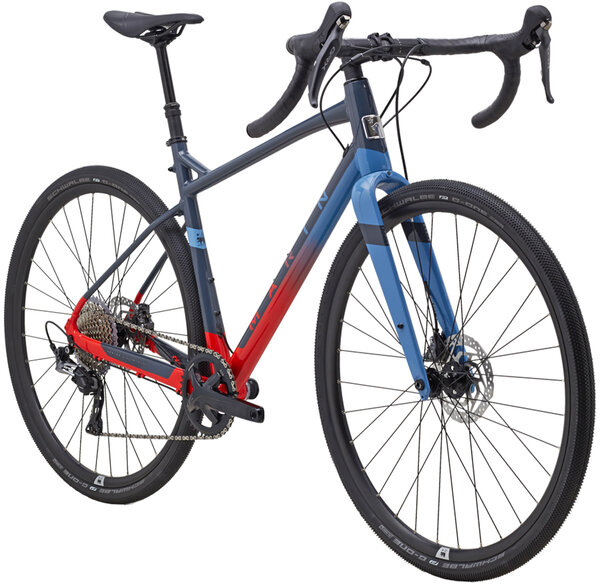

The Gestalt X is made to expand your horizons even further beyond roads. We extended the possibilities of the Gestalt by adding generous tire clearance, lowering the stand over, using solely one-by drivetrains, adding dropper post routing, and tuning the geometry for more adventurous riding. This is the dropbar bike for the rider looking for singletrack no matter what the occasion; the perfect bike to ride the road both to and from the trail and cut through unexplored places to find new routes.
Series 3 Frame
The Gestalt X features a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
Beyond Road Geometry
The Gestalt X takes our Beyond Road Geometry to the next level of aggressive road and dirt exploration with a blend of endurance road handling and mountain bike sensibilities.
The Gestalt X features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.
The Gestalt X frame and fork have clearance for up to up to 700c x 45 or 650B x 47 Road Plus tires.
- Series 3 aluminum frame
- Full carbon fork
- Shimano GRX 1x11 drivetrain
- Shimano GRX hydraulic disc brakes
- TranzX YSP38J dropper seatpost
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
|Frame||Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc|
|Fork||Marin Full Carbon w/ Tapered Steerer, Flat-Mount Disc, Fender Eyelets|
|Headset||FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"|
Front: 100 x 12mm thru-axle
Rear: 142 x 12mm thru-axle
|Rims/Wheels||Marin Aluminum Double Wall, 21mm Inner, 30mm Tall, Disc Specific, Tubeless Compatible|
|Hubs||Forged Aluminum Alloy, 6-Bolt Disc, 32H|
|Spokes||14g Black Stainless Steel|
|Tires||Schwalbe G-One Performance, 700c x 40mm, Folding Bead|
|Crankset||FSA Gossamer Pro, BB386EVO Alloy Spindle|
|Bottom Bracket||FSA MegaExo Threaded|
|Rear Derailleur||Shimano GRX Shadow w/Clutch|
|Cassette/Rear Cogs||Shimano 11-Speed, 11-42T|
|Shifters||Shimano GRX GX8010, 1x11-Speed, Integrated Dropper Lever|
|Handlebars||Marin Butted Alloy, Compact 16º Flared Drop|
|Tape/Grips||Marin Shock Absorbing Perforated Tape|
|Stem||Marin 3D Forged Alloy|
|Brake Levers||Shimano GRX Hydraulic w/ Shifter and Integrated Dropper Lever|
|Brakes||Shimano GRX Hydraulic Disc, 160mm Rotors|
|Saddle||Marin Beyond Road Concept Elite|
|Seat Post||TranzX YSP38J Dropper Post, 105mm/85mm Travel, 27.2mm|
|Accessories & Extras||Bolt-On Thru-Axles F and R|
* Subject to change without notice.
|Gloss Grey/Blue/Roarange / 50cm||843346108463||732430001|
|Gloss Grey/Blue/Roarange / 52cm||843346108470||732430002||210000031638|
|Gloss Grey/Blue/Roarange / 54cm||843346108487||732430003||210000031639|
|Gloss Grey/Blue/Roarange / 56cm||843346108494||732430004||210000031640|
|Gloss Grey/Blue/Roarange / 58cm||843346108500||732430005||210000031641|
|Gloss Grey/Blue/Roarange / 60cm||843346108517||732430006||210000031642|
