Marin Rift Zone 27.5 2

Marin Rift Zone 27.5 2
  • Color: Gloss Grey/Red
$1,999.00
Color: Gloss Grey/Red
Size: Small
Please select options Unavailable
Order now and pick up in-store for free

Details

Riding a bike is fun, and having fun on the trail was at the front of our minds when creating the Rift Zone 27.5. Built around our MultiTrac suspension system, the Rift Zone 27.5 is our most playful and fun short travel suspension trail bike to date. Entry level through to high-performance spec, everyone can fall in love with mountain biking over and over again with the Rift Zone 27.5.

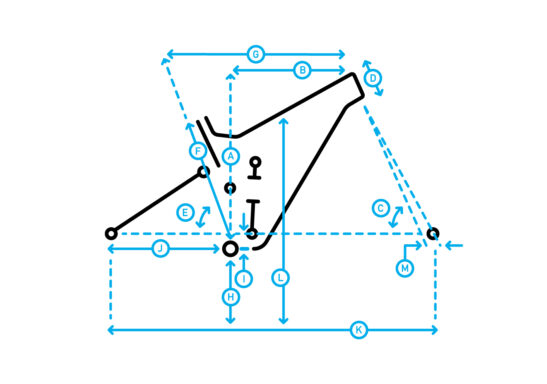

GeometryAll lengths in millimeters

Sizes:
X-SmallSmallMediumLargeX-Large
A- STACK 579 583.6 588.2 597.3 601.9
B- REACH 410 425 445 465 485
C- HEADTUBE ANGLE 66.5° 66.5° 66.5° 66.5° 66.5°
D- HEADTUBE LENGTH 105 110 120 125 130
E- SEATTUBE ANGLE 75° 74.7° 74.5° 74.3° 74.1°
F- SEATTUBE LENGTH 330 380 425 470 515
G- TOPTUBE EFFECTIVE 570.6 586.8 608.1 632.9 651.9
H- BB HEIGHT 338.5 338.5 338.5 338.5 338.5
I- BB DROP 18 18 18 18 18
J- CHAINSTAY 430 430 430 430 430
K- WHEELBASE 1129.4 1146.3 1168.3 1192.3 1214.3
L- STANDOVER HEIGHT 647 665 702 727 768
M- FORK OFFSET 42 42 42 42 42
SEATPOST DIAMETER 30.9 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH 780 780 780 780 780
STEM LENGTH 35 35 35 35 35
CRANK LENGTH 170 170 175 175 175
Sizes:
SizeRider height range
X-Small 5'1" to 5'4"
Small 5'4" to 5'7"
Medium 5'7" to 5'10"
Large 5'10" to 6'1"
X-Large 6'1" to 6'4"

Specs

Frame All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Fork Marzocchi Bomber Z2 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Rear Shock RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware
Rims Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Hubs Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub BodyShimano HF-MT410B, 110x15mm, Centerlock
Spokes 14g Black Stainless Steel
Tires Vee Tire Flow Snap 27.5x2.35", Tackee Compound, Tubeless Ready
Bottom Bracket Mego EXO 73mm BSA
Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Shifters Shimano Deore, 12-Speed, SL-M6100-R
Rear Derailleur Shimano Deore, 12-Speed, SGS
Cassette/Freewheel Shimano, Deore 12-Speed, 10-51T
Chain KMC X-12 Silver and Black
Brakes Shimano BR-MT200 Hydraulic Disc, 180mm Rotor,Shimano BR-MT200 Hydraulic Disc, 180mm Rotor,Shimano BL-MT201
Rotors Shimano BR-MT200 Hydraulic Disc, 180mm Rotor,Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers Shimano BL-MT201
Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Tape/Grips Marin Grizzly Lock On
Stem Marin 3D Forged Alloy, 35mm
Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
Saddle Marin Speed Concept
Accessories & Extras Bolt-On Thru-Axle

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Grey/Red / Small 843346119131 735950001 210000034020
