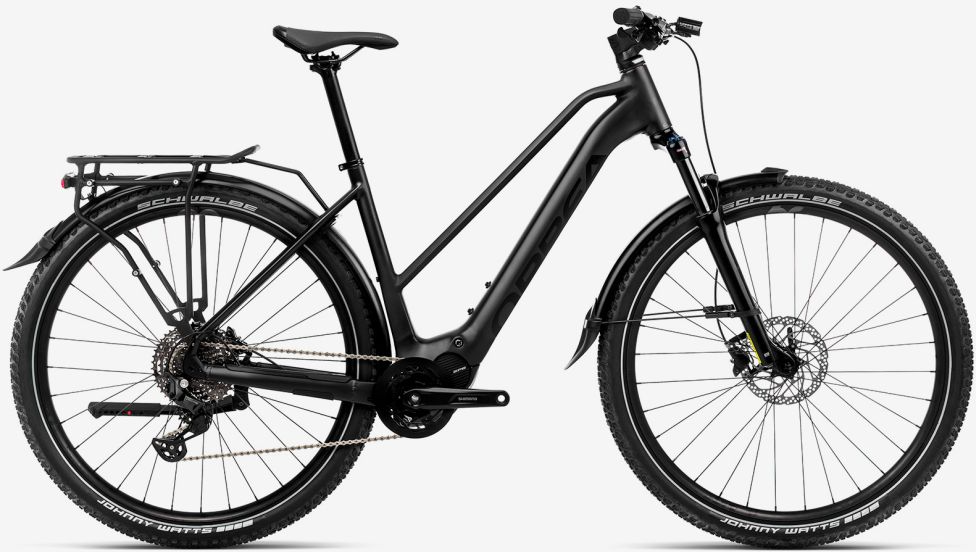

Orbea Kemen Mid SUV 40 20mph
$3,699.99
Details
The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious and effortless, Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breath fresh air on your way to work, let Kemen take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane and have an urban adventure.
| Small | Medium | Large | |
|---|---|---|---|
| 1 - SEAT TUBE (C-T) | 400 | 453 | 483 |
| 2 - TOP TUBE (EFF) | 563 | 576 | 606 |
| 3 - HEAD TUBE | 110 | 115 | 132 |
| 4 - CHAINSTAY | 445 | 445 | 445 |
| 5 - BB HEIGHT | 307,5 | 307,5 | 307,5 |
| 6 - BB DROP | 63 | 63 | 63 |
| 7 - WHEELBASE | 1134 | 1142 | 1173 |
| 8 - HEAD ANGLE | 66,5º | 67º | 67º |
| 9 - SEAT ANGLE | 75º | 75º | 75º |
| 10 - STANDOVER | 732 | 740 | 743 |
| 11 - REACH | 405 | 415 | 440 |
| 12 - STACK | 617 | 624 | 640 |
| 13 - FORK LENGTH | 513,5 | 513,5 | 513,5 |
| 14 RAKE | 44 | 44 | 44 |
| Frame Size | Rider height (in) |
|---|---|
| Small | 61.1"-66.9" |
| Medium | 65.0"-70.9" |
| Large | 70.1"-74.8" |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible |
|---|---|
| Fork | SR Suntour X1 Coil LO 100mm QR |
| Wheels | Alloy, Tubeless, 29", 29c, 32H |
| Tires | Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape |
| Crankset | Shimano Steps EM600 |
| Chainrings | Alloy EP8 36t w/chainguard |
| Shifters | Shimano Deore M5130 Link Glide |
| Rear Derailleur | Shimano Deore M5130 Link Glide GS Shadow Plus |
| Cassette/Freewheel | Shimano CS-LG400 11-43t 10-Speed |
| Chain | KMC eGlide |
| Brakes | Shimano MT200 Hydraulic Disc |
| Handlebars | OC Mountain Control MC31, Rise20, Width 800 |
| Stem | Alloy forged, 35mm interface, -6º, ICR |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Seatpost | Alloy, 31.6mm, Setback 0 |
| Saddle | Selle Royal Vivo 1216 DRN 160x249mm |
| Pedals | VP-537 Black |
| Motor | Shimano EP600 |
| Battery | Orbea Internal 540Wh (Optional 250 Wh Range Extender) |
| Controller/Display | Shimano EN500 |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Urban Green (Gloss)/Black (Matt) / Small | 08434446234798 | N65416VE | 210000034240 |
| Urban Green (Gloss)/Black (Matt) / Large | 08434446235092 | N65419VE | 210000034238 |
