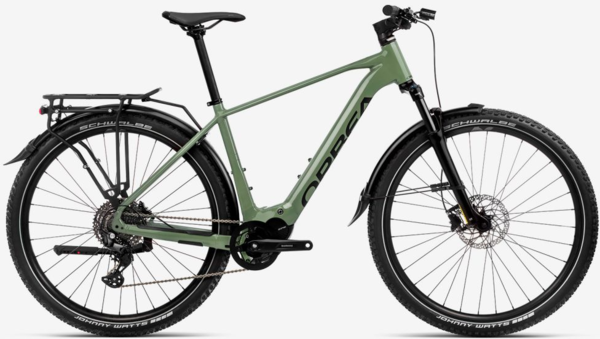

Orbea Kemen SUV 40 20mph

Orbea Kemen SUV 40 20mph
$3,699.99
Color: Urban Green (Gloss)/Black (Matt)
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious and effortless, Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breath fresh air on your way to work, let Kemen take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane and have an urban adventure.

Geometry Chart:
SmallMediumLargeX-Large
1 - SEAT TUBE (C-T) 400 453 483 533
2 - TOP TUBE (EFF) 563 576 606 642
3 - HEAD TUBE 110 115 132 153
4 - CHAINSTAY 445 445 445 445 445 445
5 - BB HEIGHT 307,5 307,5 307,5 307,5
6 - BB DROP 63 63 63 63
7 - WHEELBASE 1134 1142 1173 1211
8 - HEAD ANGLE 66,5º 67º 67º 67º
9 - SEAT ANGLE 75º 75º 75º 75º
10 - STANDOVER 781 810 833 866
11 - REACH 405 415 440 470
12 - STACK 617 624 640 659
13 - FORK LENGTH 513,5 513,5 513,5 513,5
14 - RAKE 44 44 44 44
Sizes:
Frame SizeRider height (in)
Small 61.1"-66.9"
Medium 65.0"-70.9"
Large 70.1"-74.8"
X-Large 72.8"-78.74"

Specs

Frame Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Fork SR Suntour X1 Coil LO 100mm QR
Wheels Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
Crankset Shimano Steps EM600
Chainrings Alloy EP8 36t w/chainguard
Shifters Shimano Deore M5130 Link Glide
Rear Derailleur Shimano Deore M5130 Link Glide GS Shadow Plus
Cassette/Freewheel Shimano CS-LG400 11-43t 10-Speed
Chain KMC eGlide
Brakes Shimano MT200 Hydraulic Disc
Handlebars OC Mountain Control MC31, Rise20, Width 800
Stem Alloy forged, 35mm interface, -6º, ICR
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost Alloy, 31.6mm, Setback 0
Saddle Selle Royal Vivo 145x269mm
Pedals VP-537 Black
Motor Shimano EP600
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Controller/Display Shimano EN500
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Urban Green (Gloss)/Black (Matt) / Large 08434446234675 N65119VE 210000033918
Urban Green (Gloss)/Black (Matt) / X-Large 08434446234736 N65121VE 210000034239
